Why Choose Arcadia
Choose Arcadia Software to simplify the complexity of wire harness design and manufacturing with a process that works as hard as you do.

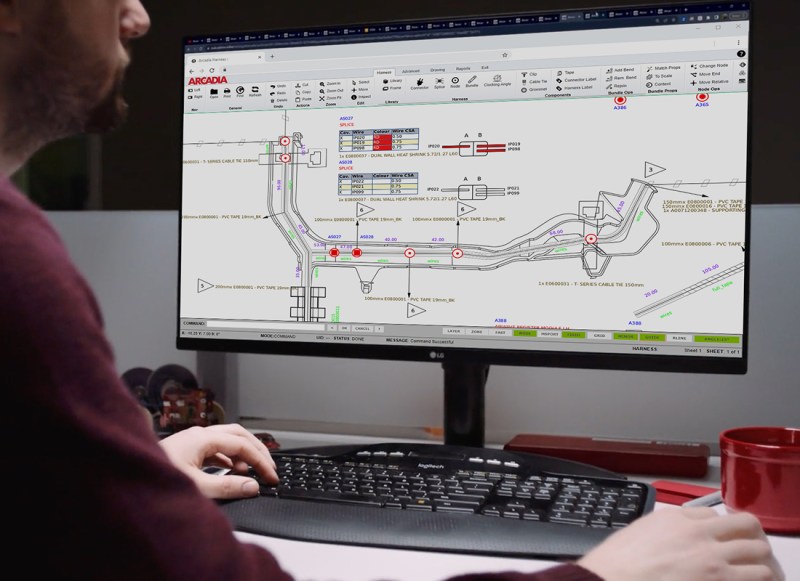

Begin design quickly with our built-in component library and stay in sync across schematic and harness designs with Arcadia Schematic & Arcadia Harness. Use these products seamlessly and automatically generate your harness design from your schematic file.
Keep close control of your harness design from beginning to end. With Arcadia, your designs are backed-up with version control in our cloud-based platform.
Validate designs instantly with built-in IPC-620 compliant Design Rule Checks. Catch costly errors before they go to production.
Selectively share designs, create custom permissions groups and redline designs with comments to quickly align your team on changes.
Ensure quick, accurate quotes based on your Bill of Materials (BOM) and labor costs with Arcadia Quote.

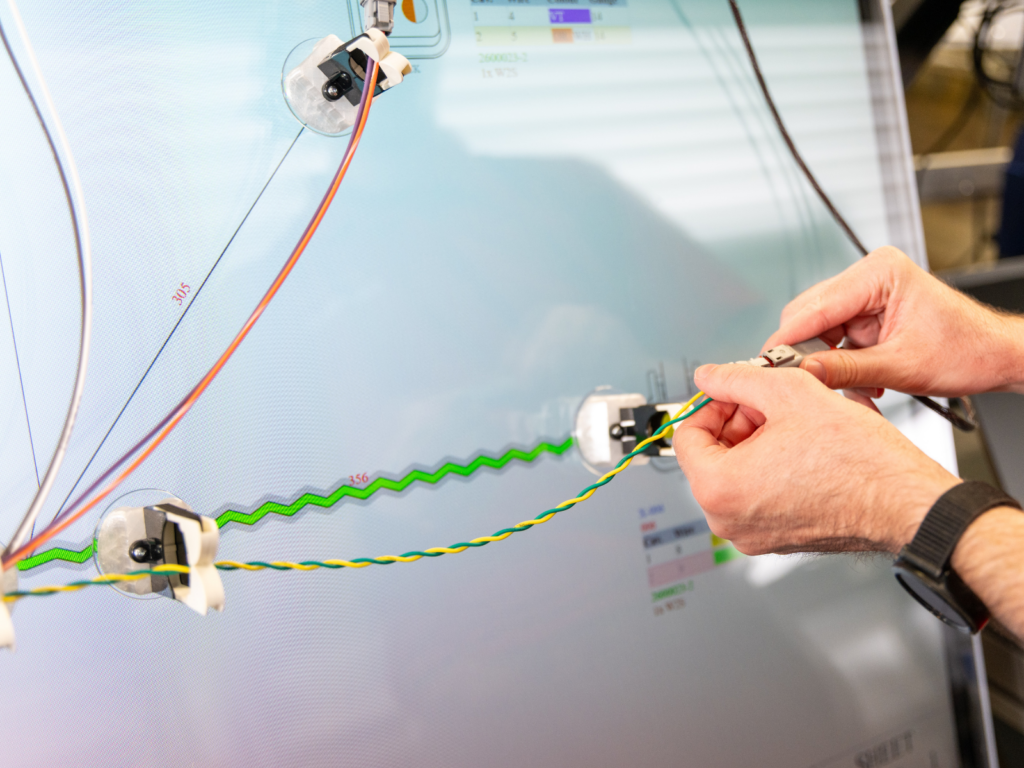

Quickly generate 1:1 formboards and manufacturing instructions in a shareable format using Arcadia Manufacturing. Say goodbye to long lead times and wasted materials.

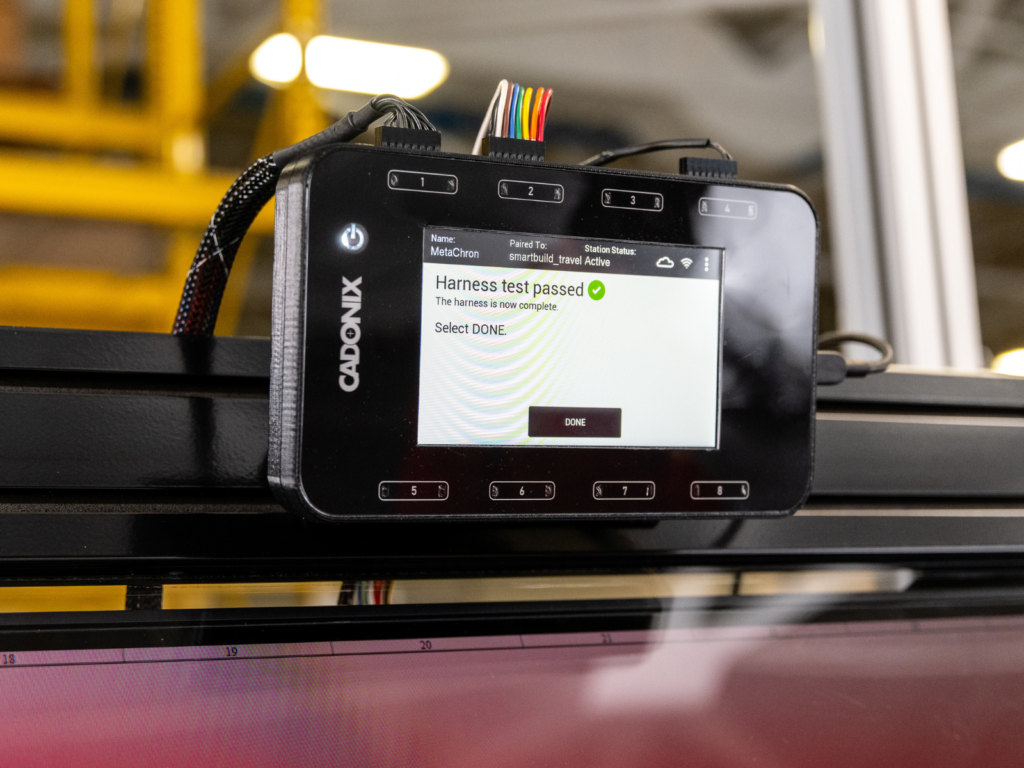

Finally, test your harness design automatically during formboarding to ensure first-pass quality.
Additional Benefits
Cadonix offers expert support when you need it, wherever you are in the process of wire harness design and manufacturing. .
Cadonix is not only the worlds leading Professional cloud Harness Design CAD suite, we are also providers of professional engineering services and support.
With a light footprint and no on-prem hassles, it’s easy to get started with our browser-based platform
Being cloud-based gives you the perks of a PDM product without the extra costs and fees
Arcadia’s API allows you to integrate to your enterprise’s PLM, ERP and other popular 3-D MCAD systems
Arcadia enables dispersed teams to simultaneously collaborate in a single source of design truth. Easily turn access on and off via the Arcadia Portal.
Time Savings
Turn 2 hours into 2 minutes by using Arcadia vs. a manual harness design process.
Wire Packing
Update cavity parts
Choose bundle covering
1 h 20 min
Run design rule check
25 m
Wire Packing
30 sec
Update Cavity Parts
20 sec
Choose Bundle Covering
30 sec
Run design rule check
5 sec
FAQs
From schematic design, to harness layout and manufacturing. Cadonix offers a suite of harness design software and hardware that simplifies your workflows from start to finish. Not sure which product is right for you? Our sales team can help.
Any industry that uses a wire harness can benefit from using Arcadia. Industries like automotive, aerospace, industrial machinery, and electronics manufacturing benefit the most from Arcadia’s end to end enterprise features.
Arcadia is a cloud-based platform. You can use it as long as you have a good internet connection and an internet browser.
Yes, you can use a single login on multiple devices. Keep in mind, you get one named license with our Arcadia Essentials License and unlimited licenses with Arcadia Professional.
Yes! Cadonix offers a free trial of any Arcadia product – Schematic, Harness, Manufacturing or all three together. Your free trial starts after you check out with a product and receive your license credentials.
Cadonix has an extensive library of videos, case studies and getting started resources to support your use of Arcadia. We also have 24/7 technical support and live chat to assist you during onboarding and troubleshooting.
Explore
Contact us to set up your free trial of Arcadia, just fill out this form and we’ll get you started!
